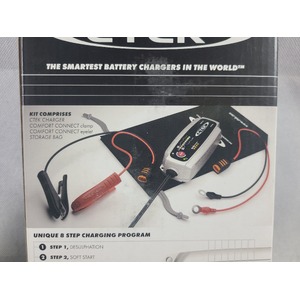

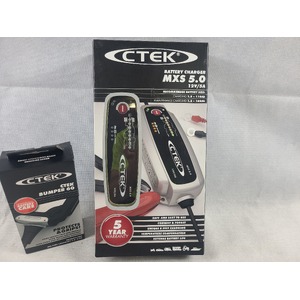

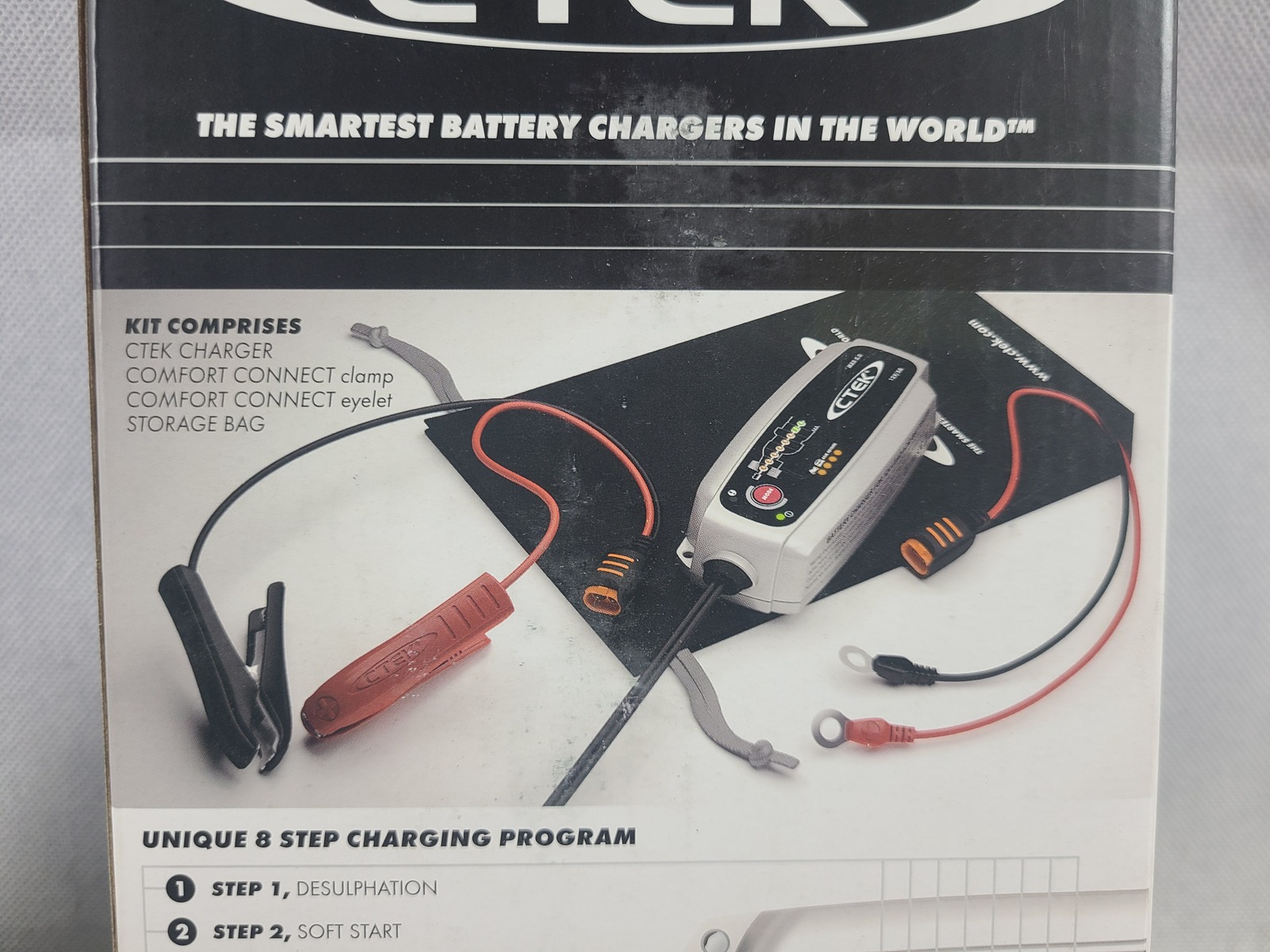

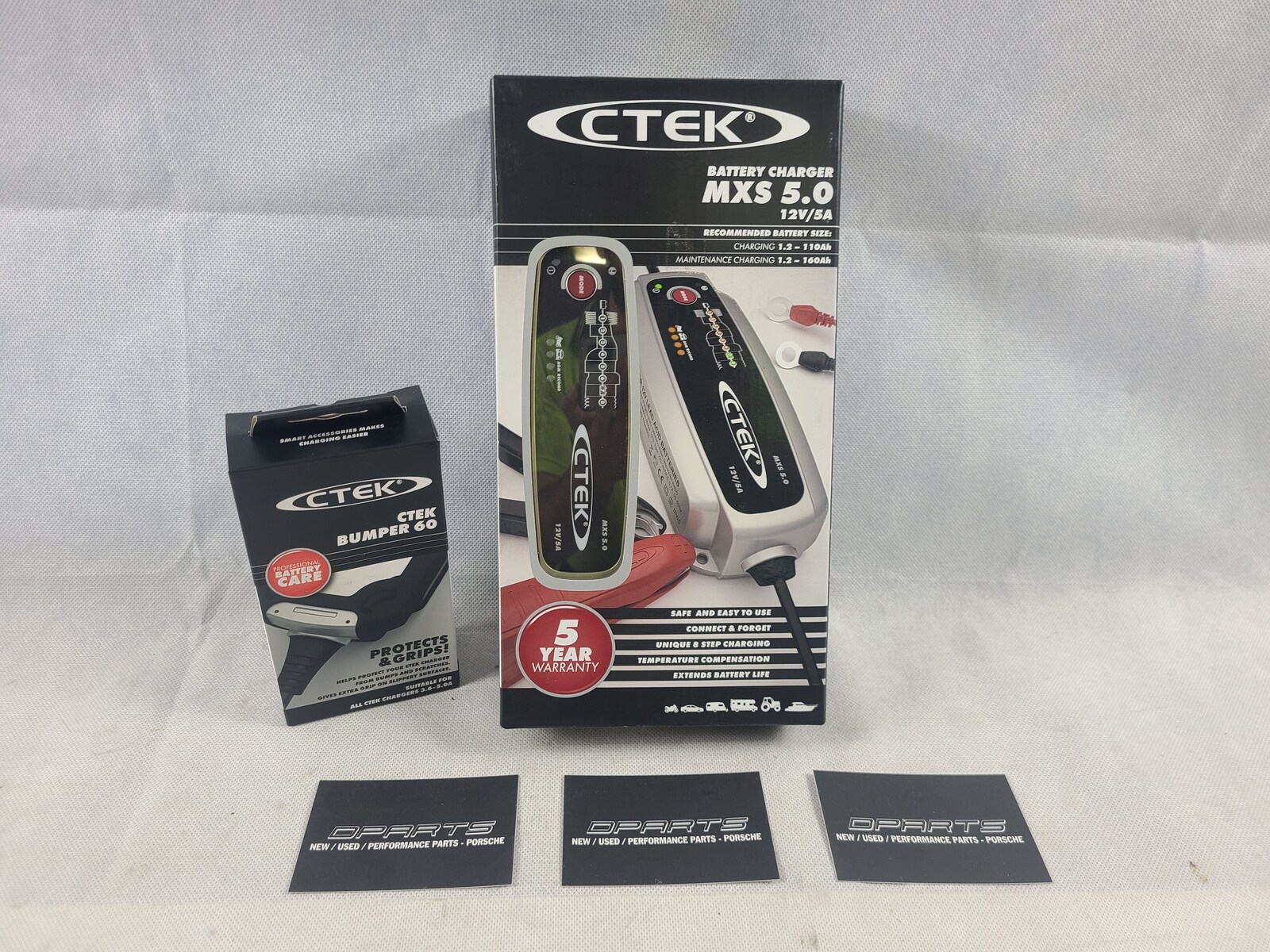

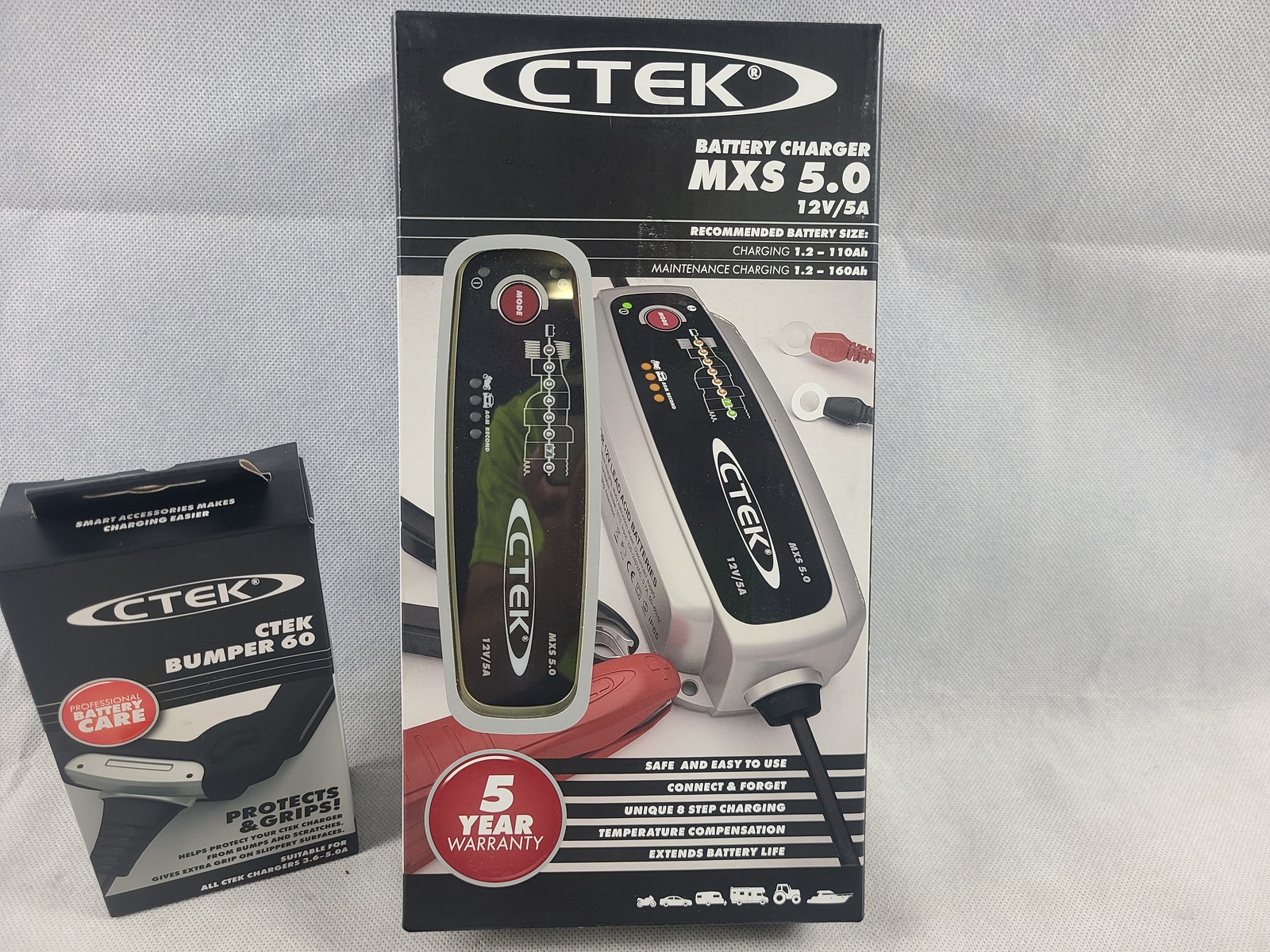

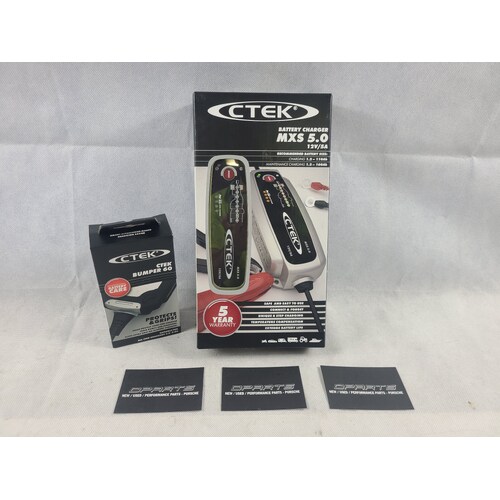

Automatic charging and maintenance for vehicle and motorcycle batteries, with reconditioning mode

The MXS 5.0 is an advanced microprocessor controlled battery charger which gives unrivalled performance for lead acid batteries from 1.2-110Ah. It comes with automatic temperature compensation built in which ensures the best charging performance, even in the most extreme conditions. The MXS 5.0 also includes battery diagnosis to establish whether your battery can receive and retain a charge, patented automatic desulphation program, an AGM option which maximises the performance life of most Stop/Start batteries and a special Recond mode for reconditioning deeply discharged batteries. The MXS 5.0 uses CTEK’s patented float/pulse system, which is the most efficient maintenance mode when a battery is connected for long periods.

Features:
Charges batteries up to 110A
Easy to read LED display
Splash and dust proof (IP65)
Safe spark free operation
Reverse polarity protected
Short circuit proof

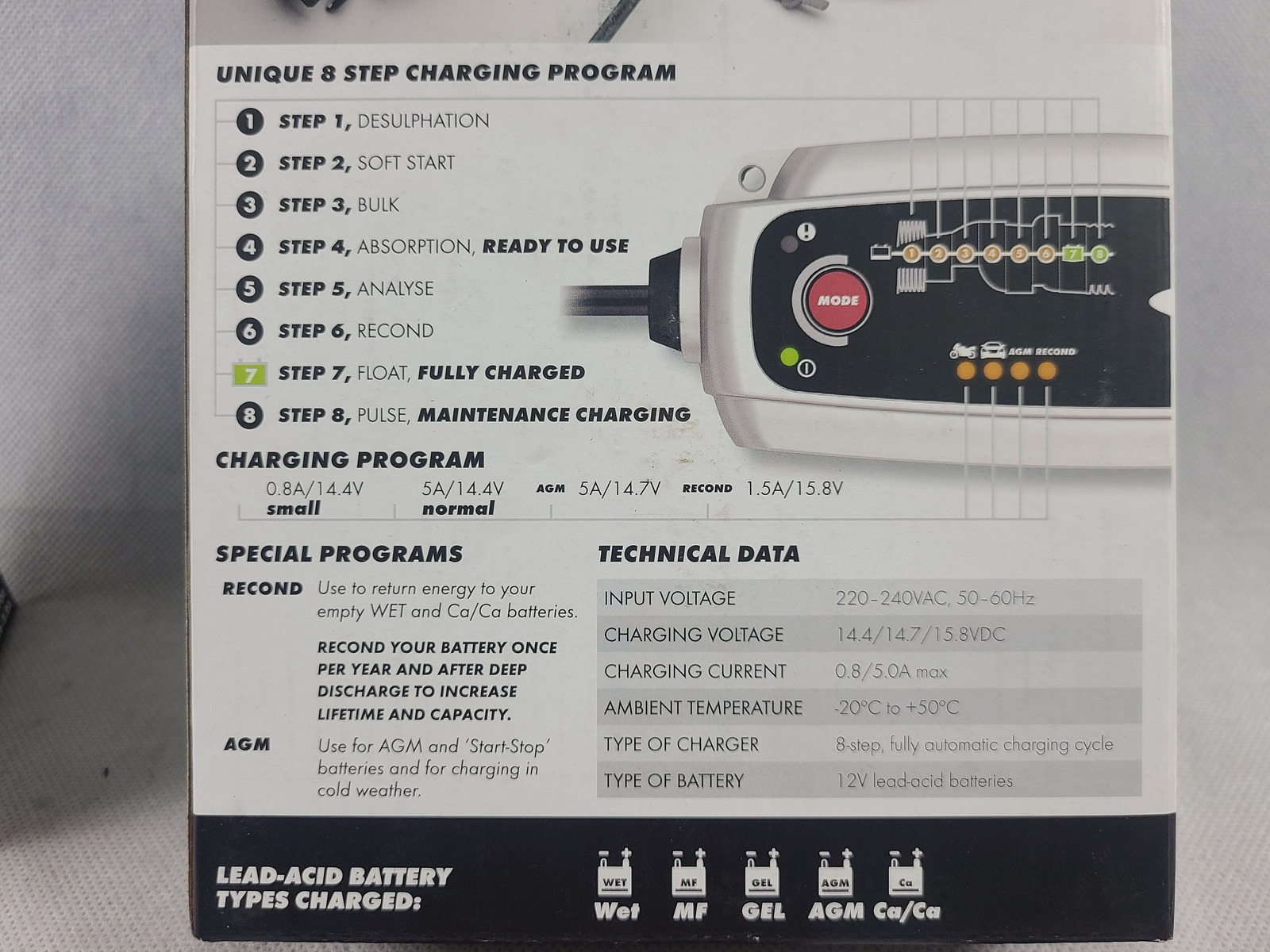

Technical data:
Battery capacity: 1.2–160 Ah
Charging category: AC charging
Back current drain*: Corresponding to less than 1 Ah/month
Battery voltage: 12 V
Battery chemistry: Lead acid (AGM, GEL, EFB, MF, CaCa)
Ambient operating temperature: -20 °C to +50 °C
Input: 220–240 VAC, 50–60 Hz, 0.6 A
Output: 14.4/14.7/15.8 V, 5.0 A
Start voltage: 2.0 V
Ripple**: Less than 4 %
Battery types: 12 V:; WET; MF; Ca/Ca; AGM; GEL
Ingress protection: IP65
Warranty***: 5 years

* Back Current Drain details: Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.

** Ripple details: The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.

*** Warranty, info: Limited Warranty

Part Number: 56-987
Brand CTEK
SKU 56-987
Shipping Weight 0.7000kg
Shipping Width 0.050m
Shipping Height 0.300m
Shipping Length 0.150m
Shipping Cubic 0.002250000m3
